Welcome to Xiangshan Huayang Machinery Accessories Factory
0086-574-65010069  0086-574-65012388

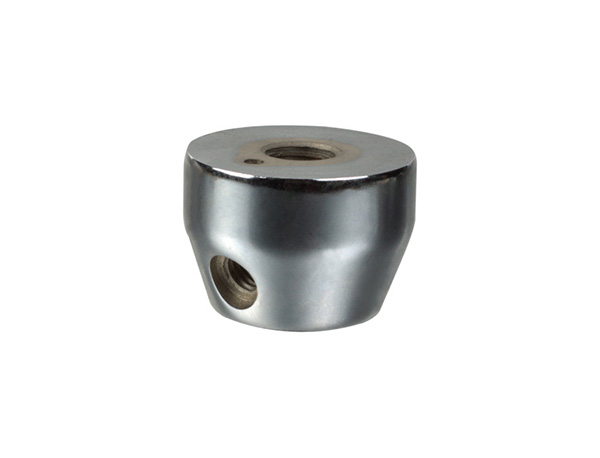

Handle Seats
  • Handle Seats
  • Product Name: Handle Seats
    Model Number: HY8312.2
    Brand Name: Huayang
    Executive Standard: JB/T 7272.2-94 (GB4141.17-84)
    Material: Cast iron
    Surfaced Process: Sand-blasted / Chrome bright
    Place of Origin: Zhejiang, China (Mainland)
Product specification

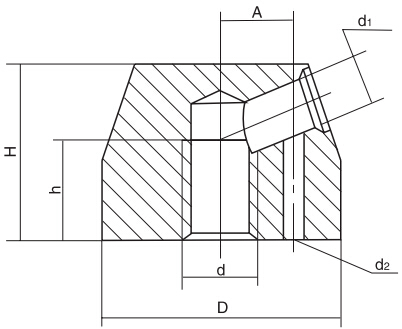

Drawing

HY8312.2鎖緊手柄座結(jié)構(gòu)圖

Parameter Size

Item No.Main dimensions（mm）Mounting hole
Cast ironDHAdhd?d?
HY8312.2\M12x40402812M121683
HY8312.2\M16x50503514M1620104
HY8312.2\M24x70705022M2432125
